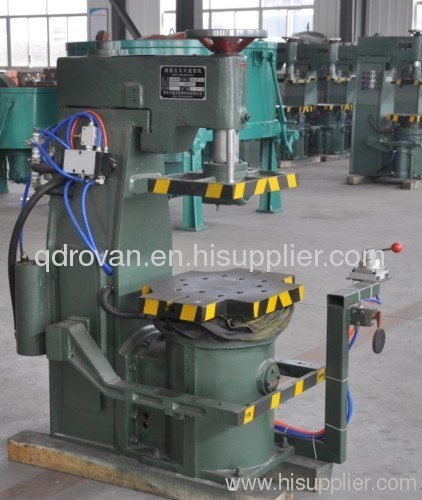

Jolt Squeeze Molding Machine For Foundry from China manufacturer

Jolt Squeeze Molding Machine For Foundry

Price:	2500.0~60000.0 USD
Payment Terms:	T/T,L/C,
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: z14 series

Production Capacity: 30-50sets/month

Delivery Date: 30-45days

Type: Molding machine

Fuel: Electric

Means of Transport: Ocean,

Packing: wooden case, card boards, p...

Certification: ISO 9001:2000

Color: Selectable

Marerial: Metal

Jolt Squeeze Molding Machine For Foundry
1. Certification:ISO9001
2. OEM
3. Saving energy
4. Eco-friendly

Specification:

Z14seriesJolt Squeeze Molding Machine For Foundry is using the fuselage box structure pasket to improve the body of the steel.

It adopt microseism squeeze molding technics used to significantly increase the pressure and the strength to make up hardness HB90,sand box more than one level to increase surface roughness,make the quality of the other products stable.

The machine adopt cylinder, crank, connecting rod, synchronizing shaft achieve molding synchronusly.

Jolt Squeeze Molding Machine For Foundry technical parameter:

type	Z145WA	Z145WB
foundry flask maximum dimension(mm)	500450200	500450200
worktable dimension(mm)	600*550	600*550
jolting load(kgf)	300	300
compressive stress(kgf)	5500	6300
compress process(mm)	200	200
moulding process(mm)	180	200
productivity(case/h)	40-60	40-60
jolting cylinder diameter(Φmm)	150	150
consumption of free air(m³/case)	0.4	0.4
control mode	PLC	PLC

Trade Terms:

Payment:

1) Telegraphic Transfer (30% advance payment, balance before shipment)

2) Telegraphic Transfer (30% advance payment, balance against copy of documents)

3) Letter of Credit: at sight

2. Lead Time: 2 weeks after confirmed order

3. Delivery way: by sea

Application:

Surface treatment
Machined spare parts
Style design

Our Service:

Reply your inquiry in 24 working hours.
Experienced staffs answer all your questions in fluent English.
Customized design is available. UEM&UBM are welcomed.
Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
Special discount and protection of sales are provided to our distributor.
Professional factory: We are manufacturer, specializing in producing all kinds of machinery for more than 11 years, competitive with good quantity.
Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges are usually paid by your side, the charges will be rebounded when we have formal order.
As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
