full automatic shell core machine from China manufacturer

Product Detail

Model No.: Z95 series

Production Capacity: 30-50sets/month

Delivery Date: 30-45days

Certification: ISO 9001:2000

Machine type:: Core shooting machine

Color: As user requirement

Size: Professional design as user...

Warranty time: One year

Means of Transport: Ocean,

Packing: wooden case, card boards, p...

Automation: Automatic

Brand Name: Rovan

Main material: Metal

Fuel: Electric

Condition: New

full automatic shell core machine
1.ISO certification
2.OEM is acceptable
3.Eco-friendly
4.Save energy

full automatic shell core machinespecifications:

Z95 series full automatic shell core machine

1. Meet the small size and sophisticated sand core or housing production needs

2. PLC programmable control

3. Adjustable technics parameters

4. Mold temperature automatic control

full automatic shell core machine technical parameter:

Item	Z954K	Z955K	Z956K	Z957K	Z958K	Z959K
Moulding board maximum dimension(mm)	450*400	550*400	650*400	750*580	850*600	950*600
Cover die thick(mm)	150	150	180	180	200	250
Movable mould minimum thick(mm)	150	200	200	200	250	250
Mould assembly process(mm)	400	400	400	400	400	450
Maximum sand core weight(kg)	15	20	20	25	30	40
Sand hopper capacity(kg)	200	200	200	250	250	250
Heating mode	Electric heating
Electric heating power (kw)	20	25	30	40	50

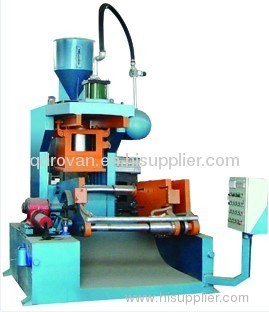

full automatic shell core machine photo:
Z95 series full automatic shell core machine

sand core samples:
Z95 series full automatic shell core machine

molds sample:
Z95 series full automatic shell core machine

full automatic shell core machine certification:
Z95 series full automatic shell core machine

Trade Terms:

1) Telegraphic Transfer (30% advance payment, balance before shipment)

2) Telegraphic Transfer (30% advance payment, balance against copy of documents)

3) Letter of Credit: at sight

2. Lead Time: 2 weeks after confirmed order

3. Delivery way: by sea

Application:

Our Service:

Reply your inquiry in 24 working hours.
Experienced staffs answer all your questions in fluent English.
Customized design is available. UEM&UBM are welcomed.
Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
Special discount and protection of sales are provided to our distributor.
Professional factory: We are manufacturer, specializing in producing all kinds of machinery for more than 11 years, competitive with good quantity.
Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges are usually paid by your side, the charges will be rebounded when we have formal order.
As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
