core shooting machine for foundry/casting from China manufacturer

core shooting machine for foundry/casting

Price:	2500.0~60000.0 USD
Payment Terms:	T/T
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ZH series

Packing: wooden case, card boards, p...

Automation: Automatic

Brand Name: Rovan

Material:: Metal/coil

Fule: Electric

Size: Non-standard and profession...

Production Capacity: 30sets/month

Delivery Date: 30-45days

Certification: ISO 9001:2000

Machine type:: Core Shooting machine

Color:: Selectable

Condition: New

Warranty time: One year

Core shooting machine for casting/foundry
1.ISO9001certification
2.OEM is acceptable
3.Eco-friendly
4.Save energy

Specification

ZH series high quality core shooting machinery for foundry

1. ZH86 series core shooting machinery

Mode of operation: manipulating disc valve control

Parting mode: vertical parting

Mode of feeding sand: auto quantitive feeding sand

Temperature control: temperature automatically display, selecting high and low temperature be controlled by the instrument.

Mode of installing mould: electric heating

Special specifications can be made incordance with customer's need.

Design and product mould for the user

ZH86 series sand core shooting machinery technical parameter:

Mode	Z8612B
Maximum mode piece dimension(mm)	500400300
Core sand capacity	12KG*2
Outline size(mm)	280016003760
Assembly power(kw)	35
Heating power(kw)	18

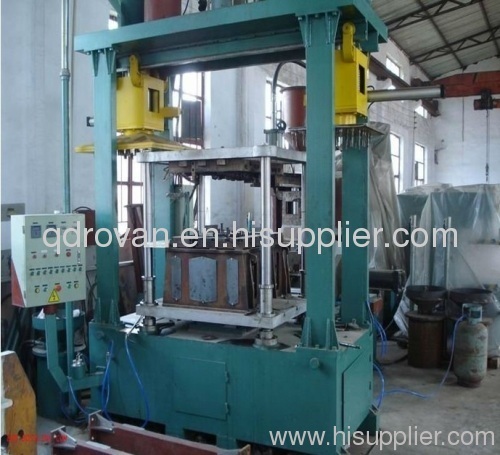

ZH86 series sand core shooting machine photos:

0 ZH series high quality core shooting machinery for foundry

2. ZH9407H-30 series core shooting machine (cold and heat)

PLC can be made available for process control

Adjustable process parameters

Out of the sand core

The box templates can be the fluctuate move

Suitable for four-cylinder, six-cylinder, water jacket sand core system

Human operator

ZH9407H-30 series core shooting machinery (cold and heat) technical parameter:

Item	ZH9407H-30			ZH9410-50	ZH9412-50
Molding board maximum dimension (mm)	780*500			1070*800	900*500
Cover die thick(mm)	200			200	200
Movable mould minimum thick(mm)	150			200	200
Mould assembly process (mm)	400			400	400
Maximum sand core weight(kg)	30			50	50
Sand hopper capacity(kg)	200			200	200
Heating mode	Electric heating/Triethylamine
Electric heating power(kw)	35	45	50
System pressure(Mpa)	0.58
Operation mode	Semi-automatic/Automatic

ZH9407H-30 series core shooting machinery (cold and heat) photos:
0 ZH series high quality core shooting machinery for foundry

3. ZH870 series level parting cold core shooting machine

PLC programmable control

Adjustable technics parameters

Mold temperature automatic control

ZH870 series level parting cold core shooting machine techncal parameter:

Item	ZH750			ZH870	ZH1080
Molding maximum dimension(mm)	780*600			930*750	1150*950
Molding minimum thick(mm)	280			280	280
Mould assembly process(mm)	300			300	300
Maximum sand core weight(kg)	20			25	35
Sand hopper capacity(kg)	200			200	300
Heating mode	Electric heating/Triethylamine
Electric heating power(kw)	25	30	45
Operation mode	Semi-automatic/Automatic

ZH870 series level parting cold core shooting machine photo:
0 ZH series high quality core shooting machinery for foundry

Sand core samples:
0 ZH series high quality core shooting machinery for foundry

Molds samples:
0 ZH series high quality core shooting machinery for foundry

sand core shooting machine certification:
0 ZH series high quality core shooting machinery for foundry

Trade Terms:

1. Payment

1) Telegraphic Transfer (30% advance payment, balance before shipment)

2) Telegraphic Transfer (30% advance payment, balance against copy of documents)

3) Letter of Credit: at sight

Application:

1. Surface treatment

2. Machined spare parts

3. Style design

Our Service:

Reply your inquiry in 24 working hours.
Experienced staffs answer all your questions in fluent English.
Customized design is available. UEM&UBM are welcomed.
Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
Special discount and protection of sales are provided to our distributor.
Professional factory: We are manufacturer, specializing in producing all kinds of machinery for more than 11 years, competitive with good quantity.
Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges are usually paid by your side, the charges will be rebounded when we have formal order.
As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
